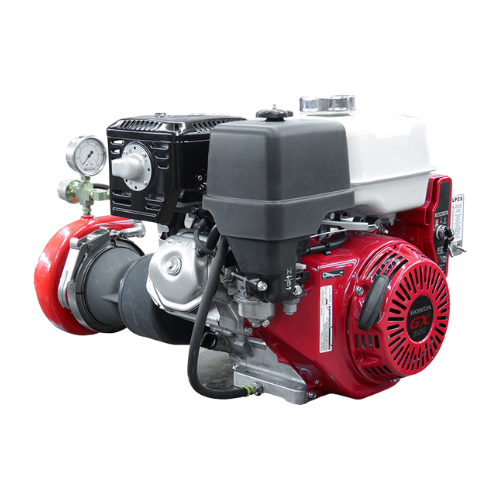

Combines the power of a superior motor with our NFF2 high-pressure 2-stage centrifugal pump delivering superior volume at greater PSI to deliver water to a wider range of elevations. This pump is available with either a Briggs & Stratton with V-twin cylinders, or Honda engine with V-twin cylinders and overhead valves.
- Powered by a 4 stroke, air cooled engine
- Electric start (battery optional) with manual recoil backup (13HP and B&S only)
- Automotive style air cleaner and external oil filter
- Two stage foam compatible pump end
- Engine and pump are coupled with stainless steel quick release clamp
- Maintenance-free speed increaser
- Choice of hand carrying tube frame or a channel base frame for vehicle mount
- Hand priming pump and pressure gauge included
- Built-in fuel tank (13 HP only)
Engine Specifications
Model
|
Honda 11.7HP |
Honda 20.8HP
|
Honda 22.1HP
|
B&S 18HP
|
B&S 23HP
|
RPM
|
3,600 |
3,600
|
3,600
|
3,600
|
3,600
|
Ignition
|
Electronic |
Electronic |
Electronic |
|
|
Fuel Used
|
Gasoline |
Gasoline |
Gasoline |
Gasoline |
Gasoline |
Starting System
|
Recoil/Electric |
Electric
|
Electric
|
Recoil/Electric |
Recoil/Electric |
Pump Specifications
| Type |
Centrifugal Two Stage High Pressure Pump |
| Priming Device |
Hand Operated |
| Inlet Size |
2" NPSH |
| Outlet Size |
1-1/2" NPSH |
Performance
Honda 11.7HP
GPM
|
95 |
80 |
63
|
18
|
0
|
PSI
|
100 |
125 |
150
|
200
|
220
|
Honda 20.8HP
GPM
|
134 |
123 |
110 |
74 |
0
|
PSI
|
100 |
125 |
150
|
200
|
245
|
Honda 22.1HP
GPM
|
143 |
135 |
124 |
86 |
0 |
PSI
|
100 |
125
|
150 |
200 |
248 |
Briggs & Stratton 18HP
GPM
|
134 |
123 |
110 |
74 |
0 |
PSI
|
100 |
125
|
150 |
200 |
245 |
Briggs & Stratton 23HP
GPM
|
143 |
135 |
124 |
86 |
0 |
PSI
|
100 |
125
|
150 |
200 |
248 |
