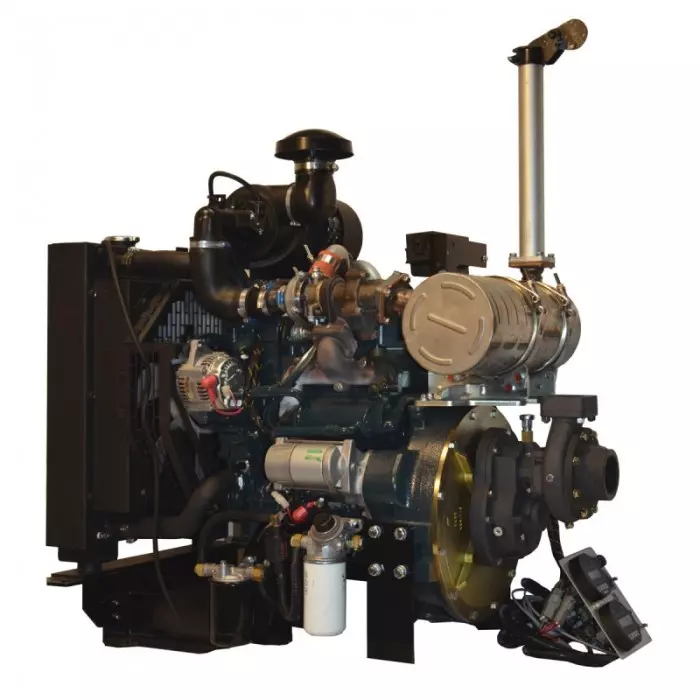

The tier 4 1-1/2 AGE 48K Kubota Diesel Engine features a 1-1/2 AGE high pressure impeller.

Engine:

• Kubota D1803T Diesel: 48 HP, liquid cooled, 12 volt starter, 40 amp. alternator, fuel and oil pump filters


Dimensions & Weight

• 45.32"L x 24.78"W x 47.32" H
• 730 lbs. (331.1 kg)

Standard Features:

• Hard anodized aluminum alloy pump casing and discharge

• Aluminum alloy gear case and engine adaptor

• Bronze impeller and wear rings

• Stainless steel impeller shaft

• Mechanical seal

• Heat treated alloy steel helical gears

• Ball bearing construction

• Electronic throttle

• Power indicator light

• Digital pressure readout

• Hour meter

• Oil psi

• Tachometer

• Engine coolant temperature

• Volt meter

• Overridable engine shutdowns

• 2" NPT suction

• 2-1 1/2" NPT or 1-2" NPT discharges


Performance:

3.76 Gear Ratio, Standard Impeller

• 200 gpm (757 L/M) @ 250 psi (17.2 bar)
• 150 gpm (567 L/M) @ 340 psi (23.4 bar)
• 100 gpm (378 L/M) @ 355 psi (24.5 bar)

High Volume Performance Curve

4.00 Gear Ratio, High Pressure Impeller

• 100 gpm (378 L/M) @ 350 psi (24.1 bar)
• 75 gpm (283 L/M) @ 365 psi (25.2 bar)
• 50 hpm (189 L/M) @ 380 psi (26.2 bar)

High Pressure Performance Curve
