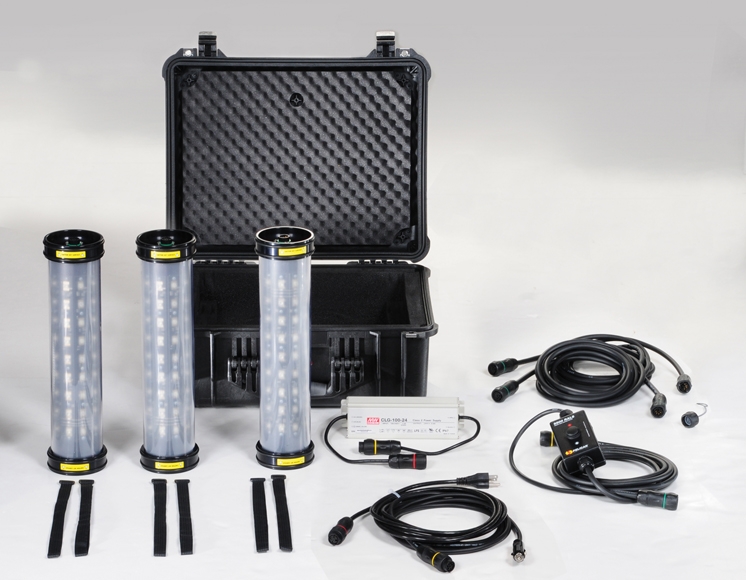

The 9500 Shelter Lighting System will be the latest addition to the RALS family of lighting solutions. It provides soldiers with safe, secure and silent LED interior shelter lighting in either white or red light. The system is extremely rugged and deploys quickly. It contains three red/white LED light heads, universal power supply, inline switch, fixing straps and a series of color coded industrial grade connecting cables. Light heads are linked together and secured via hanging straps inside the temporary shelter/accommodation. The light output color (red or white) is selected via an inline switch and each light head can be independently switched on or off. The system is powered by the enclosed universal AC power supply.
HEAD Length: 16.3" (41.4 cm) • HEAD Width: 4.09" (10.4CM )
WIDTH CLOSED : 16.87” (42.8 cm) • LENGTH CLOSED : 20.62” (52.4CM ) HEIGHT CLOSED : 8.12" (20.6 CM )
CORD LENGTH (retracted): 157.5"(399.9 cm) • WT: 29.8 lb s. (13.52 kg)
LED Type: High Flux LED
LED Life: 50000 hrs.
Tested Lumen Value: 400 (Red), 2000 (White)
Lamp Heads: 3

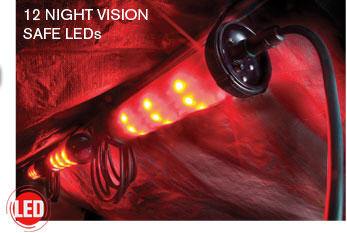

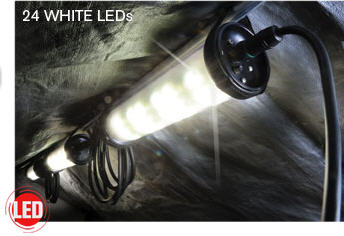

Number of LEDs: 36 per head – 24 white, 12 red
Beam Spread: 210° Diffused
12V Auxiliary Sockets
Switch Settings: Wite/Off/Red
12 – 30vdc or 110-240vac
