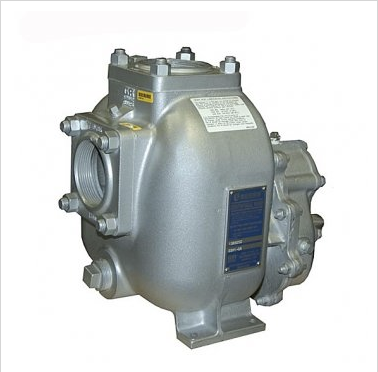

03H Tanker Pump, Clockwise

SKU: GRP 03H1GR
Price: $2,619.00
Quantity:

High pressure, self-priming centrifugal pumps mount on the tanker for direct pumping from the tank to the fire. They’re ideal for water transfer, drafting, and fighting brush fires. Gorman-Rupp® pumps are compact and easy to mount, and because they are self-priming they don’t need by-pass lines. These pumps feature aluminum construction with closed impellers. The seals are mechanical self-lubricating type. A bronze wear ring is replaceable. The pumps come in clockwise or counter-clockwise rotation.

Pump Specifications

Size3"x3" female NPT
Casing

Aluminum No. 356-T6 (03H1)

Ductile Iron No. 60-40-18 (03H3)

Maximum Operating Pressure180 lbs.
ImpellerEnclosed Type, 5 Vanes, Almag #35
Pinion ShaftAlloy Steel No. 4320
Wear RingReplaceable: Brass No. 85-5-5-5
Gear HousingGray Iron No. 30
Radial BearingOpen Ball
Thrust BearingOpen ball, Oil lubrication
FlangesAluminum No. 356-T6 (03H1)
Optional EquipmentSuction and Discharge Victaulic Flanges

Performance



PSI1171101009080
GPM75250320375400




*Special order items will have an asterisk before the configuration description (4X Large, Tall, etc.). Special order items are non-stocking, will be back-ordered and are non-returnable/refundable. Please ensure that the sizing/configurations are correct prior to ordering these items.
